垂直生命线
VERTIGRIP
New
文件
技术数据表
|
|---|

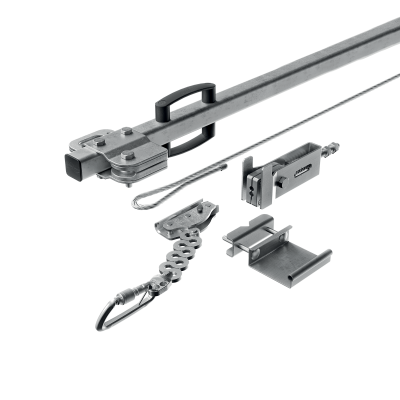

MAIN COMPONENTS OF THE VERTICAL LIFELINE
| CODE | description | material | peso netto
[Kg]
|
pcs. |
|---|---|---|---|---|
| VERTSPEAR | set for vertical lifeline with clamps and Tensioner | stainless steel 1.4301 / AISI 304 EN AW 6082 aluminium | 1.62 | 1 |
| VERTSPEARA4 | set for A4 VLL | AISI 316 stainless steel grade 1.4401 | 2.6 | 1 |
| CABLE | Ø8 7 x 7 | stainless steel - AISI316 | 0.26 | 1 |
| VERTSLIDE | removable guided type fall arrester with energy absorber for vertical lifeline | AISI 304 stainless steel grade 1.4301 EN AW 7075 T6 Aluminium | 0.4 | 1 |
| VERTSLIDEPAS | removable sliding through fall arrest device with energy absorber for vertical lifeline | AISI 304 stainless steel grade 1.4301 | 0.1 | 1 |

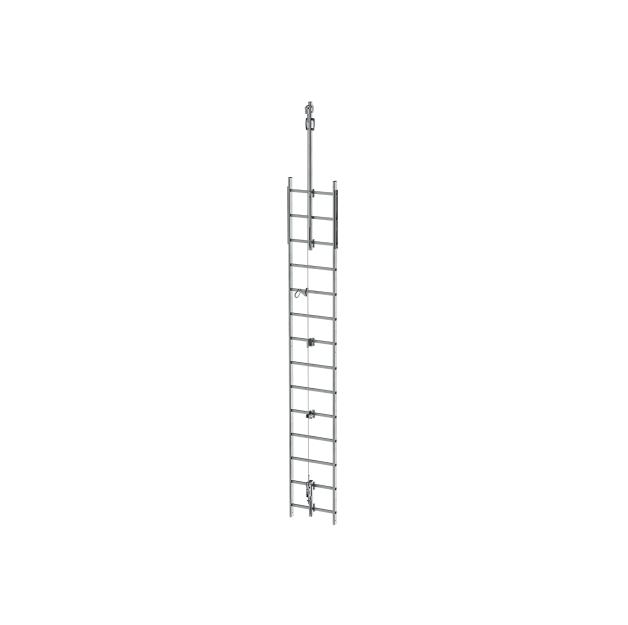

| VERTOP09 | upper anchor system (0,9 m) for vertical lifeline on ladder | AISI 304 stainless steel grade 1.4301 | 4.44 | 1 |
| VERTOP09A4 | upper anchor system (0,9 m) for vertical lifeline on A4 ladder | AISI 316 stainless steel grade 1.4401 | 4.5 | 1 |
| VERTOP17 | upper anchor system (1,7 m) for vertical lifeline on ladder | AISI 304 stainless steel grade 1.4301 | 9.46 | 1 |
| VERTOP17A4 | upper anchor system (1,7 m) for vertical lifeline on A4 ladder | AISI 316 stainless steel grade 1.4401 | 9.46 | 1 |
| VERTBASE | lower anchor system for vertical lifeline on ladder | AISI 304 stainless steel grade 1.4301 | 1.84 | 1 |
| VERTBASEA4 | lower anchor system for vertical lifeline on A4 ladder | AISI 304 stainless steel grade 1.4301 | 1.85 | 1 |
| VERTINT | intermediate bracket for vertical lifeline on ladder | AISI 304 stainless steel grade 1.4301 – ABS | 0.64 | 1 |
| VERTINTA4 | intermediate anchor system for vertical lifeline on A4 ladder | AISI 316 stainless steel grade 1.4401 – ABS | 2 | 1 |
SUPPORTS FOR VERTICAL LIFELINE ON LADDER
| CODE | description | material | peso netto
[Kg]
|
pcs. |
|---|---|---|---|---|

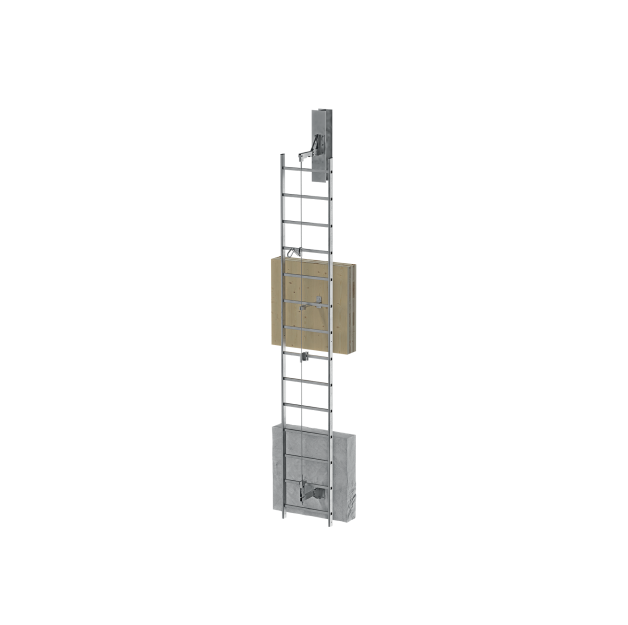

| VERTOPW | upper anchor system for vertical lifeline on structure | AISI 304 stainless steel grade 1.4301 | 2 | 1 |
| VERTOPWA4 | upper anchor system for vertical lifeline on A4 structure | AISI 316 stainless steel grade 1.4401 | 2 | 1 |
| VERTBASEW | lower anchor system for vertical lifeline on structure | AISI 304 stainless steel grade 1.4301 | 1 | 1 |
| VERTBASEWA4 | lower anchor system for vertical lifeline on A4 structure | AISI 316 stainless steel grade 1.4401 | 1 | 1 |
| VERTINTW | intermediate bracket for vertical lifeline on structure | AISI 304 stainless steel grade 1.4301 – ABS | 1 | 1 |
| VERTINTWA4 | intermediate anchor system for vertical lifeline on A4 structure | AISI 316 stainless steel grade 1.4401 – ABS | 1 | 1 |
VERTICAL LIFELINE ACCESSORIES
| CODE | description | material | peso netto
[Kg]
|
pcs. |
|---|---|---|---|---|
| VERTHAND | set of handles for VERTOP17 | PA6 - stainless steel 1.4301 / AISI 304 | 0.05 | 1 |
| VERTSUP1 | additional reinforcement set for ladder | AISI 304 stainless steel grade 1.4301 | 0.5 | 1 |
TARGAVERTxy
| CODE | description | pcs. |
|---|---|---|
| TARGAVERTIT | Label plate for VERTIGRIP systems IT | 1 |
| TARGAVERTDE | Label plate for VERTIGRIP systems DE | 1 |
| TARGAVERTEN | Label plate for VERTIGRIP systems EN | 1 |
| TARGAVERTES | Label plate for VERTIGRIP systems ES | 1 |
| TARGAVERTFR | Label plate for VERTIGRIP systems FR | 1 |
| TARGAVERTPT | Label plate for VERTIGRIP systems PT | 1 |
| TARGAVERTRU | Label plate for VERTIGRIP systems RU | 1 |
| TARGAVERTCS | Label plate for VERTIGRIP systems CS | 1 |
| TARGAVERTDA | Label plate for VERTIGRIP systems DA | 1 |
| TARGAVERTEL | Label plate for VERTIGRIP systems EL | 1 |
| TARGAVERTET | Label plate for VERTIGRIP systems ET | 1 |
| TARGAVERTFI | Label plate for VERTIGRIP systems FI | 1 |
| TARGAVERTHR | Label plate for VERTIGRIP systems HR | 1 |
| TARGAVERTHU | Label plate for VERTIGRIP systems HU | 1 |
| TARGAVERTIS | Label plate for VERTIGRIP systems IS | 1 |
| TARGAVERTJA | Label plate for VERTIGRIP systems JA | 1 |
| TARGAVERTLT | Label plate for VERTIGRIP systems LT | 1 |
| TARGAVERTLV | Label plate for VERTIGRIP systems LV | 1 |
| TARGAVERTNL | Label plate for VERTIGRIP systems NL | 1 |
| TARGAVERTNO | Label plate for VERTIGRIP systems NO | 1 |
| TARGAVERTPL | Label plate for VERTIGRIP systems PL | 1 |
| TARGAVERTRO | Label plate for VERTIGRIP systems RO | 1 |
| TARGAVERTSK | Label plate for VERTIGRIP systems SK | 1 |
| TARGAVERTSL | Label plate for VERTIGRIP systems SL | 1 |
| TARGAVERTSV | Label plate for VERTIGRIP systems SV | 1 |
| TARGAVERTTR | Label plate for VERTIGRIP systems TR | 1 |
| TARGAVERTZH | Label plate for VERTIGRIP systems ZH | 1 |
| TARGAVERTAR | Label plate for VERTIGRIP systems AR | 1 |
